Double Peak i/O Commuter 20"
$5,149.00
Out of Stock
Out of Stock
Super Fast Nationwide Shipping! View Shipping Information
Description

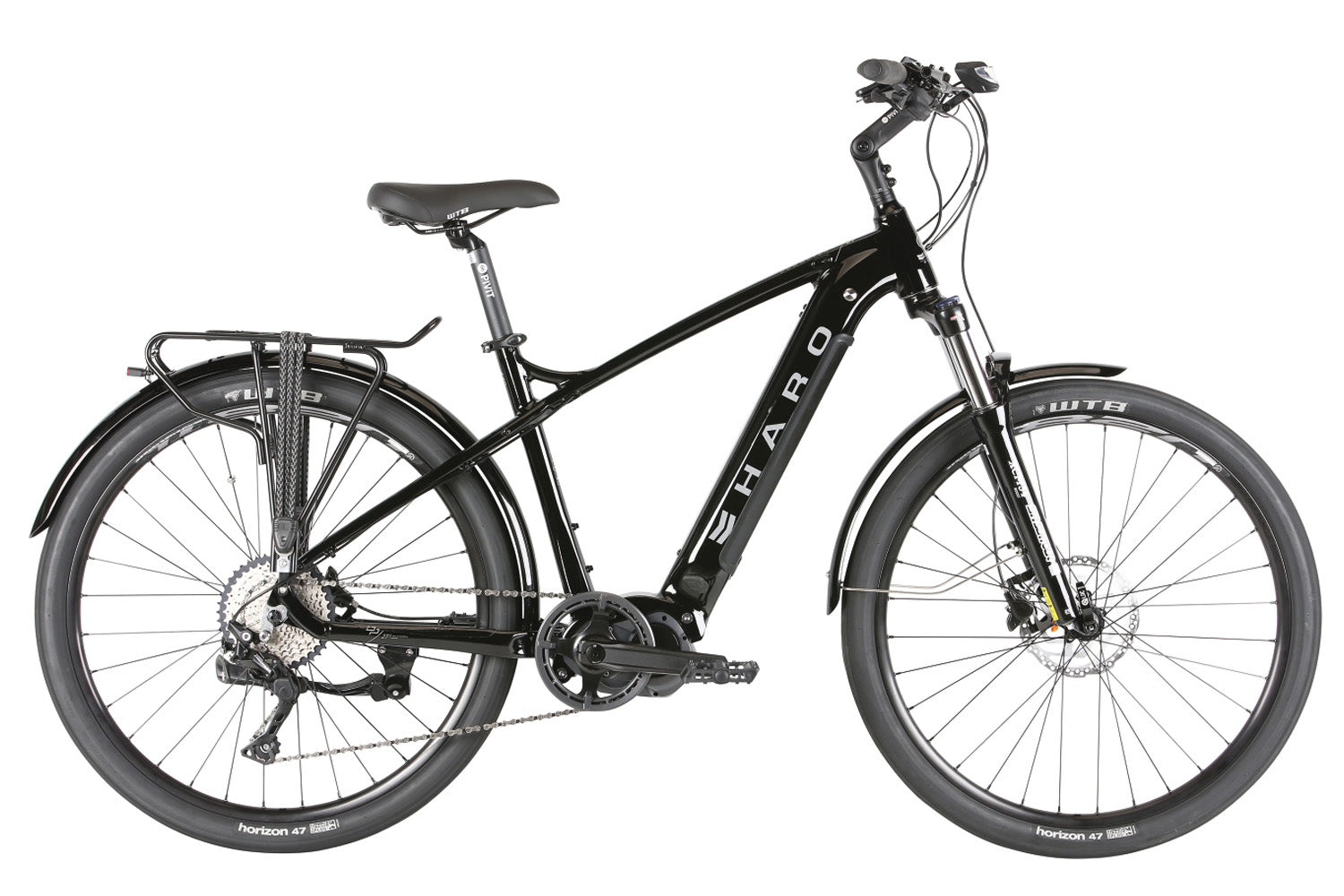

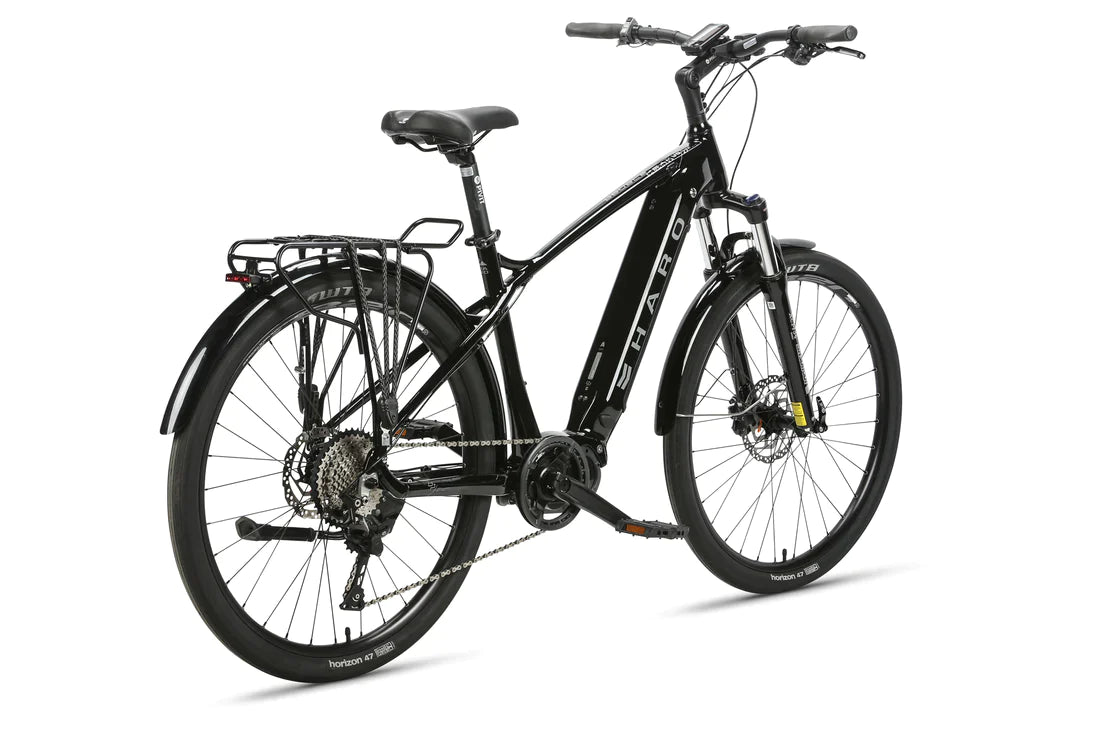

The Double Peak I/O Commuter, designed for an urban environment, relies on the same frame platform as the original MTB version, with additional city-friendly features such as adjustable-rise stem, fenders, rear rack, front / rear lights and narrower WTB Horizon tires with reflective patches for increased safety. The Double Peak frame with its slick internal down-tube hides the battery away for a streamlined look. The Commuter's features include a new Deore 10-speed 1-by drive-train and a Shimano STePS 6100 compact mid-motor drive (with its components), programmed for on-road use. The Commuter is your perfect companion for work commutes or adventures around town.
Features
- Double Peak i/O X6 series frame, internal battery, tapered head tube
- Suntour XCM-34 Boost fork, 100mm travel w/ 15mm thru-axle
- Shimano STePS E6100 Drive unit & components
- 250 Watts, 60Nm motor w/ Darfon internal 504wh battery
- New Deore M5120 10-spd Shadow Plus rear derailleur
- New Deore M4100 10-spd 11-46T cassette
- Samox crankarms w/ Shimano 38T chainring
- Shimano MT-201 hydraulic disc brakes, 180mm/160mm rotors

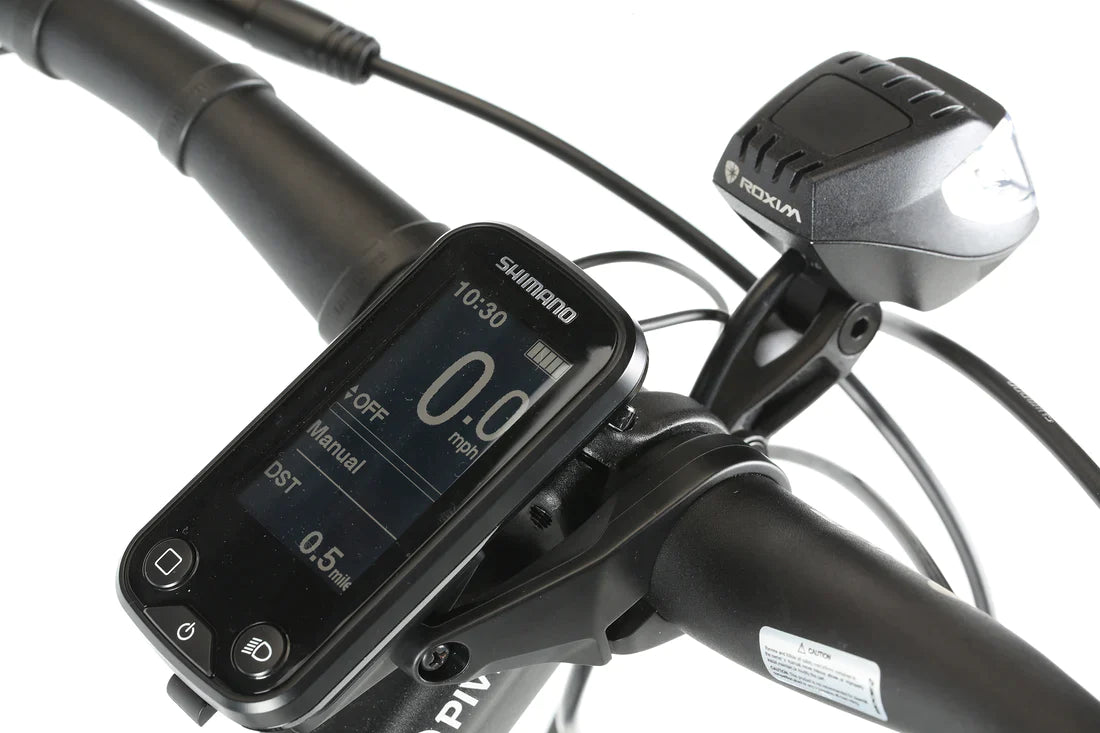

- Front & rear lights, rear rack, fenders & kickstand
| FRAMESET | |
|---|---|

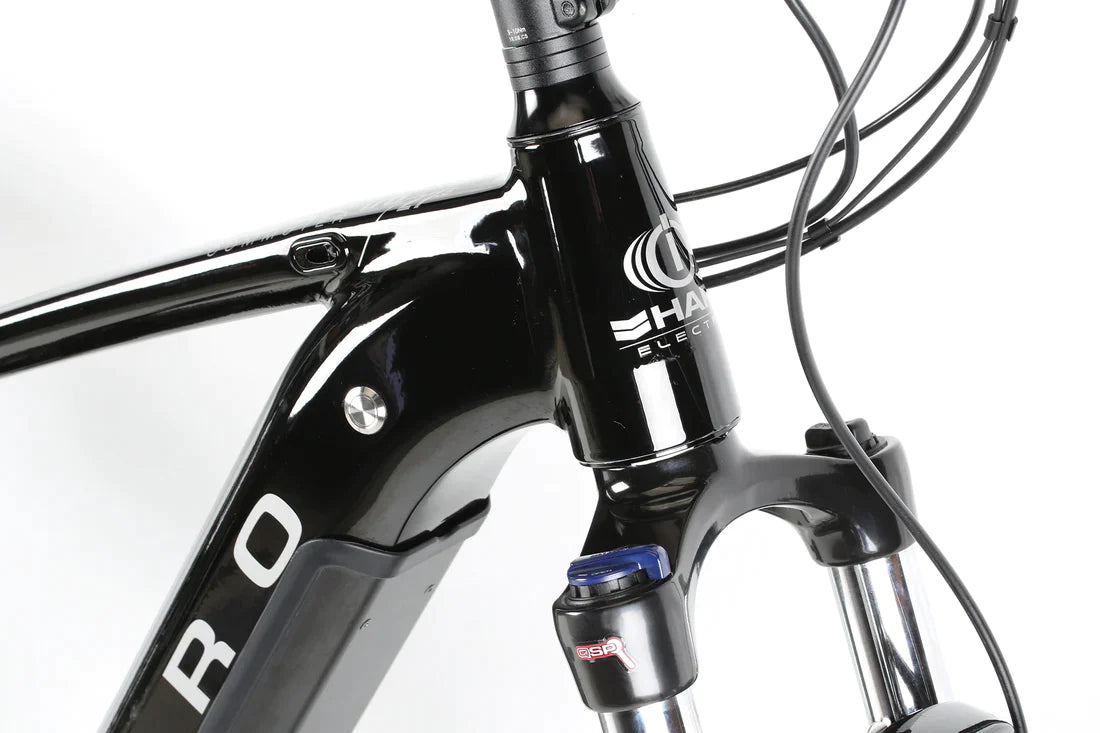

| Frame | Double Peak I/O X6 Aluminum frame for Shimano STePS Tapered Head Tube | Internal battery Down Tube |
| Fork | SR Suntour XCM34 Boost LO DS T/A | 100mm travel | Tapered | Lockout |
| Colors | Black / Silver |
| DRIVETRAIN | |

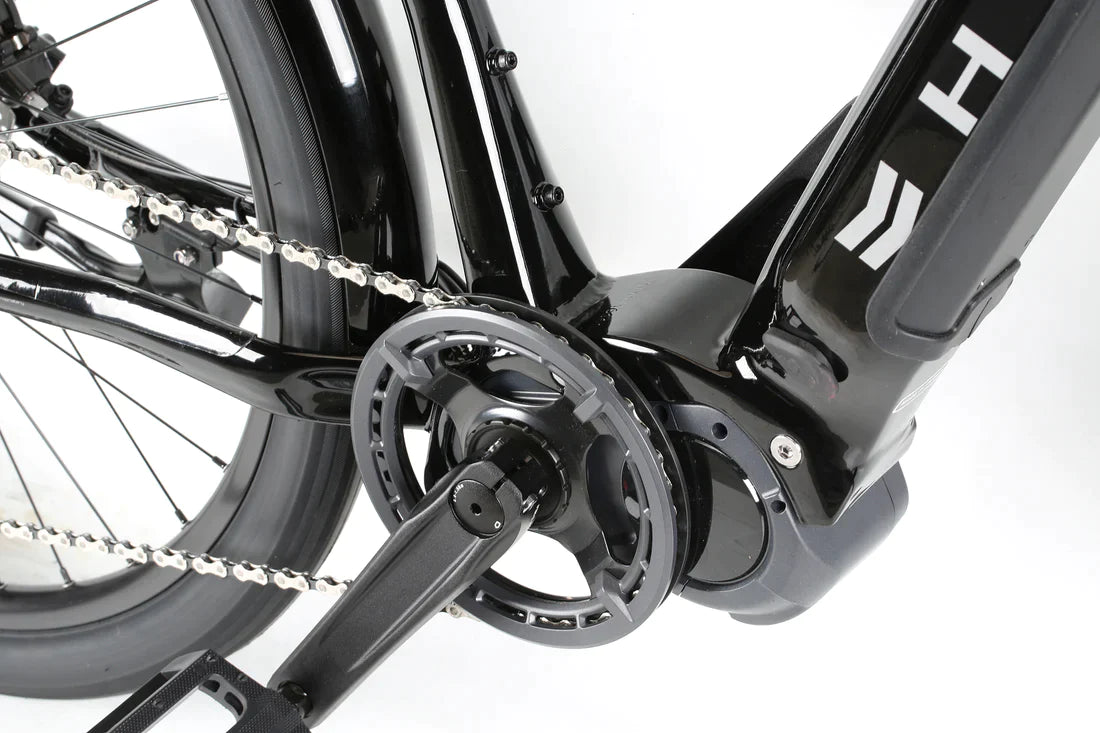

| Cranks | Samox TEC39-SHE80 | Shimano 38T Chainring |
| Pedals | FPD Nylon | 9/16" Chromoly axles |
| Chain | KMC e10S Sport |
| Bottom Bracket | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | New Shimano Deore RD-M5120 | 10-spd | Shadow Plus |
| Derailleur Shifter | Shimano Deore RapidFire+ 10-spd |
| Freewheel/Cassette | New Shimano Deore CS-M4100-10 | 10-spd | 11-46T |

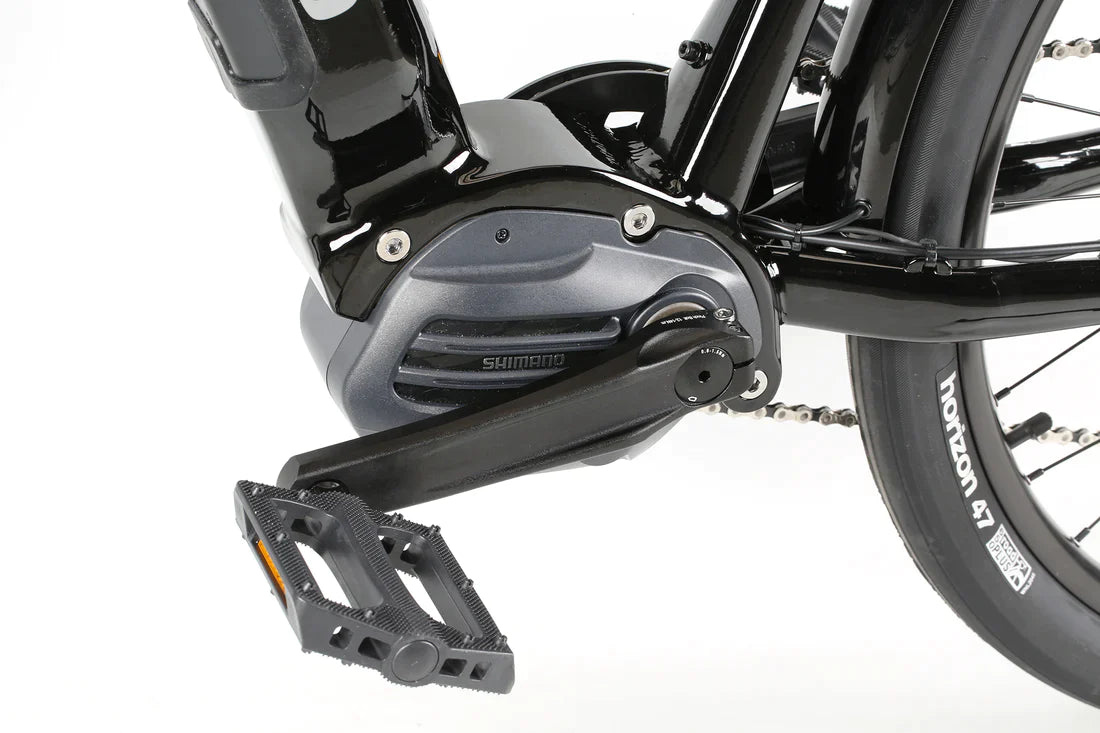

| Drive Unit | Shimano STePS E6100 | 250 W. | 60 Nm Torque |
| Battery | Darfon Internal for ShimanoSTePS | 504Wh |
| WHEELS | |
| Tires | WTB Horizon Comp 650Bx47mm | Black Reflective patches | 30Tpi | Wire Beads |
| Wheels/Rims | Weinmann U-28 TL | Sleeved | Tubeless Ready | 27.5"x32mm | Double Wall w/ eyelets |
| Hubs | Shimano MT-400 Front Thru-Axle | M-4050 Rear Quick Release | 32h | Cassette Body |
| BRAKING SYSTEM | |
| Brakes | Shimano BR-MT200 Hydraulic Disc | 180mm / 160mm Center Lock Rotors |

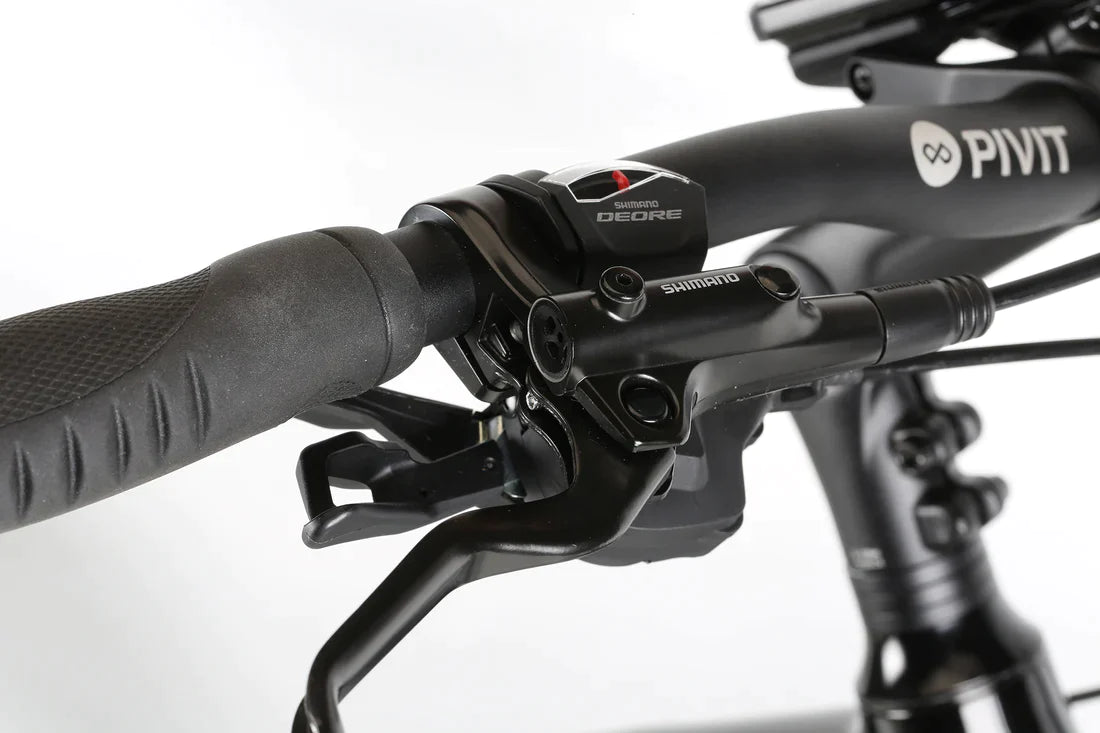

| Brake Levers | Shimano BL-MT201 Hydraulic |
| OTHER COMPONENTS | |
| Grips/Tape | Velo Ergonomic |
| Handlebar | Aluminum riser bar | 25mm Rise |

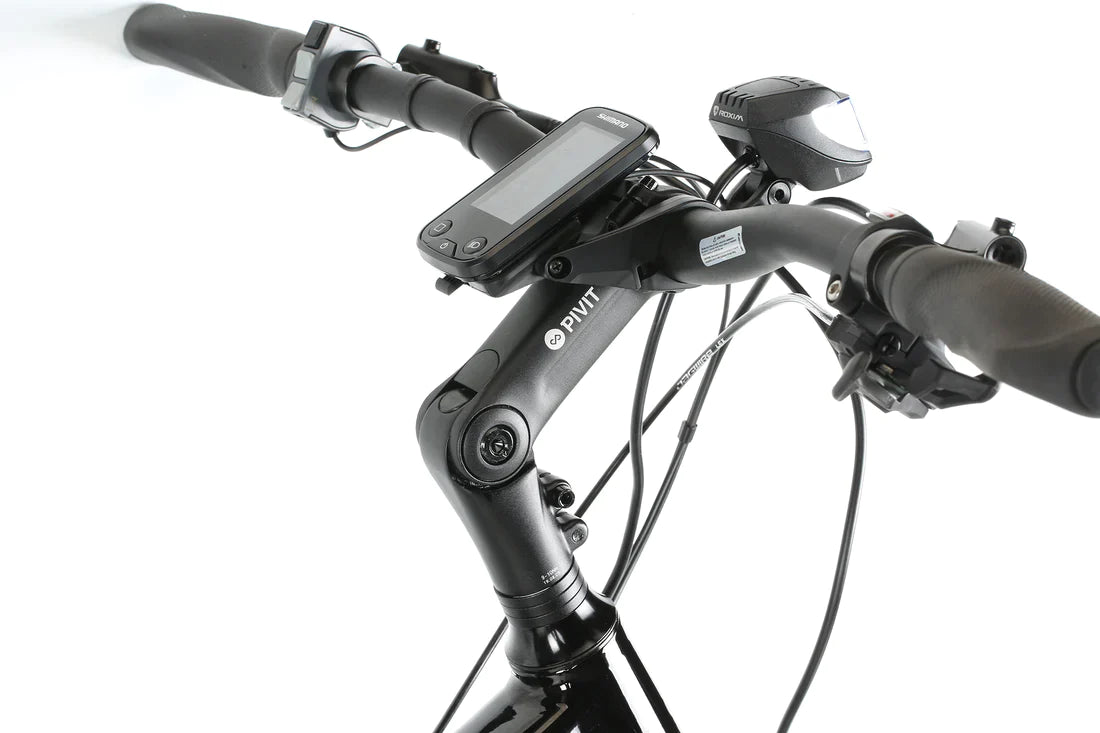

| Stem | Pivit 3D Forged | Adjustable | Intergrated front light mount |
| Headset | FPD Dozer 1-1/8"-1.5" | AC Bearing bottom |

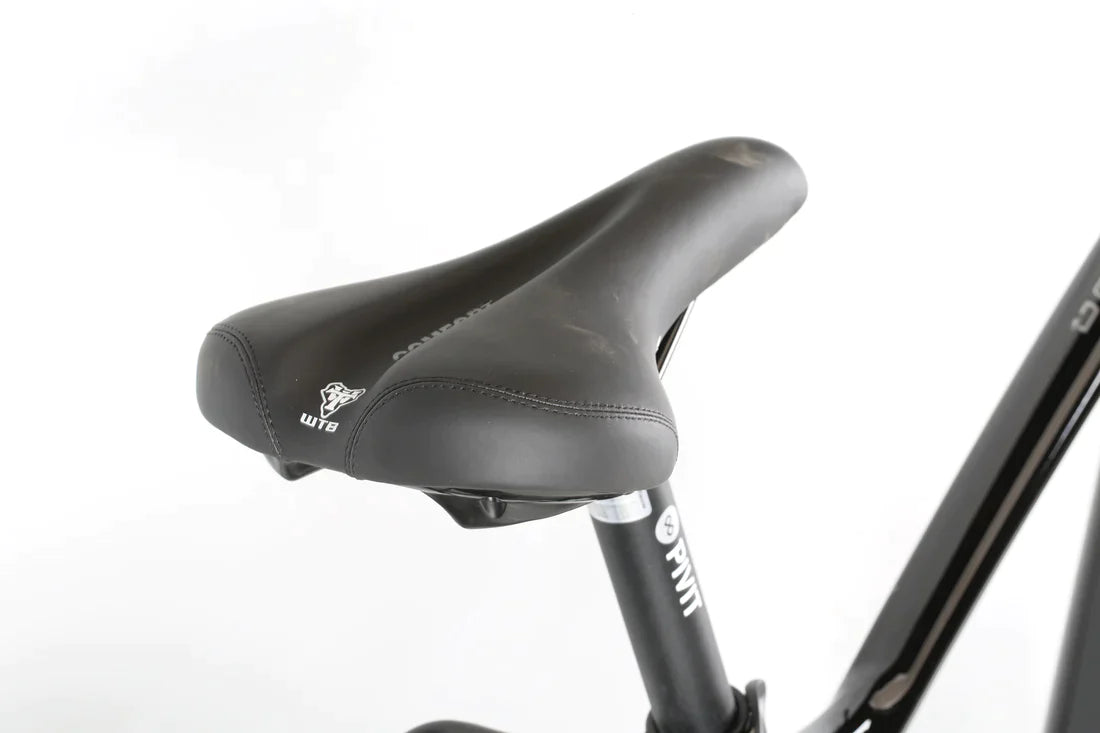

| Saddle | WTB Comfort Sport |
| Seat Post | Pivit Alloy Microadjust 31.6 x 350mm |

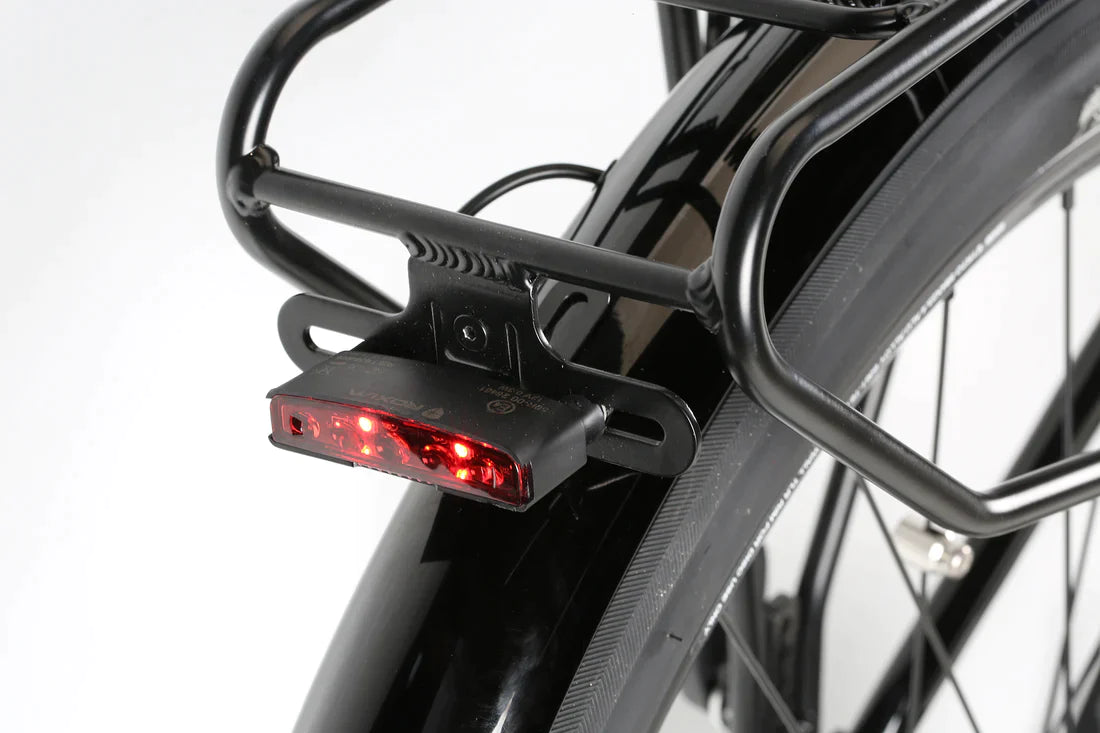

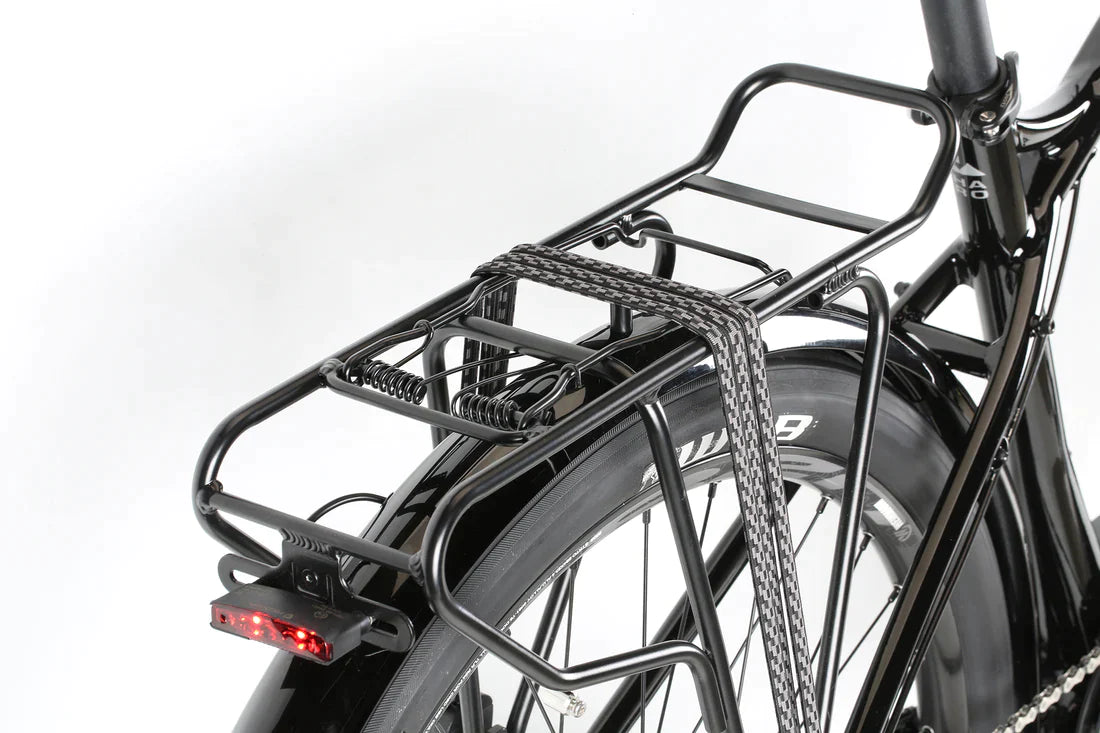

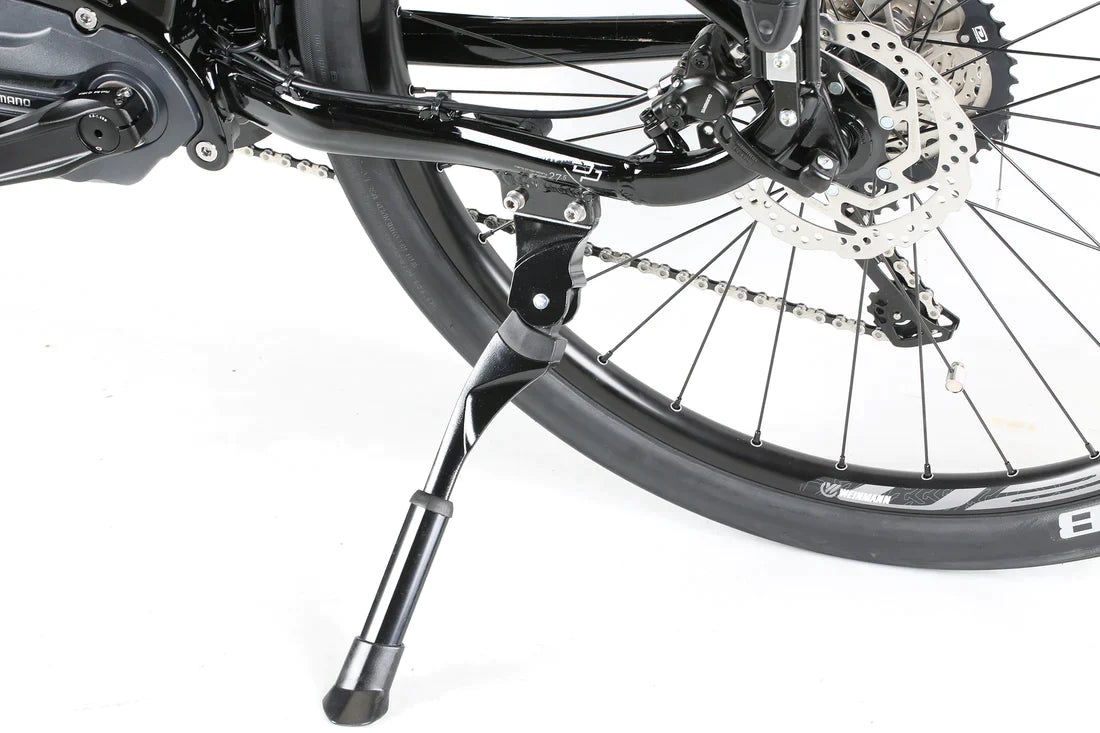

| Extras | Front & Rear lights | Rear rack | Fenders | Kickstand | Darfon Battery charger | Battery Lock |
