| FRAME |
SCULTURA CF3 V, material: carbon, 700x30C max. Wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5 |
| FORK |
SCULTURA CF3 Disc, 700x30C max. Wheelsize |
| BRAKE FRONT |
Shimano 105 |
| BRAKE REAR |
Shimano 105 |
| ROTOR FRONT |
Shimano RT64, 160mm |
| ROTOR REAR |
Shimano RT64, 160mm |
| HEADSET |
FSA ACR |

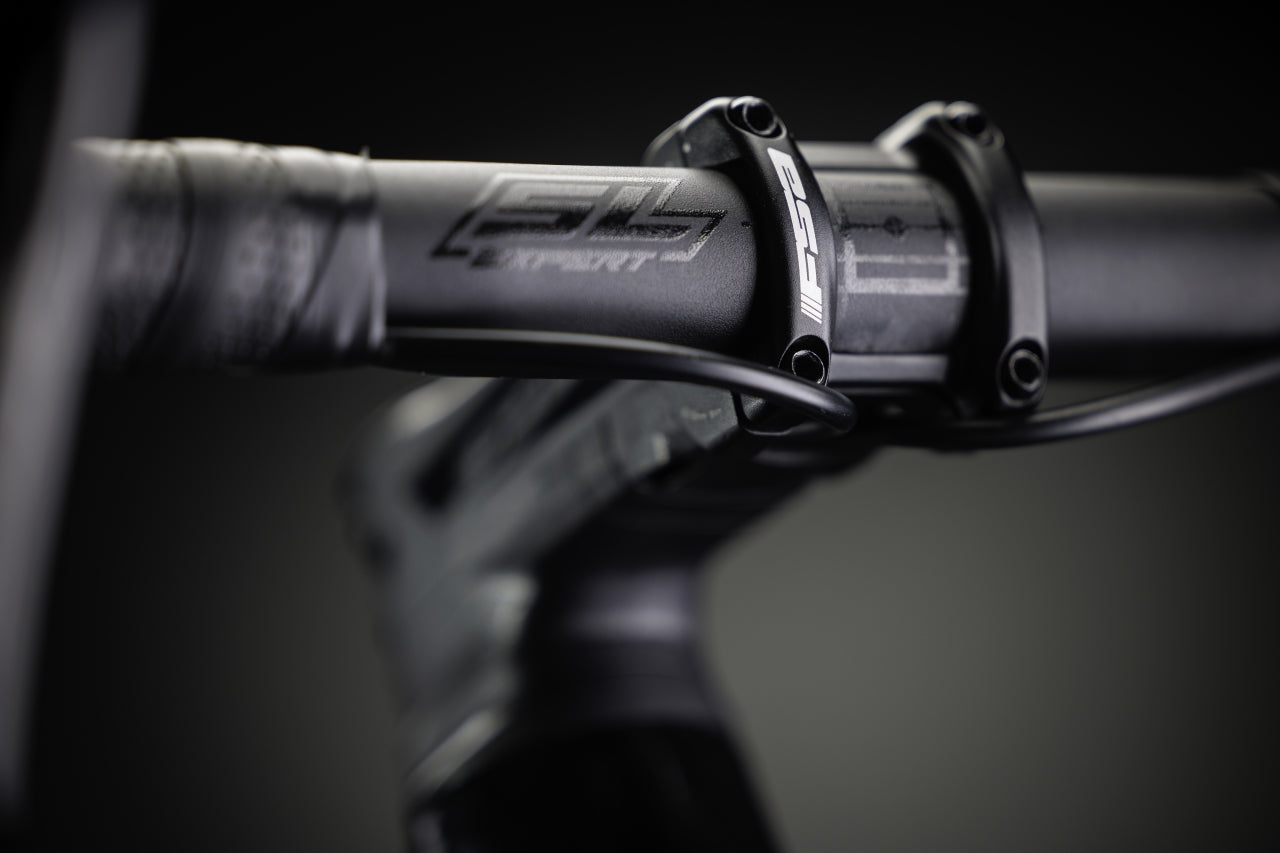

| HANDLEBAR |
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M),440mm (L-XL) |
| HANDLEBAR STEM |
FSA SMR ACR, material: aluminium, -6° stem angle, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
| GRIP |
MERIDA ROAD Expert |
| DERAILLEUR (R) |
Shimano 105 Di2 |
| DERAILLEUR (F) |
Shimano 105 Di2 |
| SHIFTER FRONT |
Shimano 105 disc Di2 |
| SHIFTER REAR |
Shimano 105 disc Di2 |
| SEAT POST |
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon |
| SEAT CLAMP |
MERIDA EXPERT |
| SADDLE |
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| CHAIN |
Shimano CN-M6100-12 |
| CRANK |
Shimano Shimano 105, FCR7100 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL |
| FREEWHEEL |
Shimano CS-R7100, 11-30 teeth, 12 speed |
| BOTTOM BRACKET |
SM-BB71-41B, Pressfit 86.5 |
| RIM |
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
| TYRE FRONT |
Maxxis Highroad, 700x28C, fold *tubeless ready |
| TYRE REAR |
Maxxis Highroad, 700x28C, fold *tubeless ready |
| HUB FRONT |
VP CLK170F, 100x12 mm width, 28 spoke holes, Centerlock |
| HUB REAR |
VP CLK270R, 142x12 mm width rear hub, 28 spoke holes, Centerlock |
| AXLE FRONT |
MERIDA EXPERT SL |
| AXLE REAR |
MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
| SPOKES |
Double Butted Black stainless |
| WEIGHT |
8.34kg (MD) |
| MAX WEIGHT |
120kg, Total weight of bike, rider and luggage |
