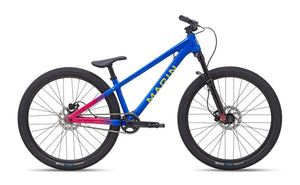

MARIN ALCATRAZ 26 SHORT
$2,399.00
Out of Stock
Super Fast Nationwide Shipping! View Shipping Information
Description
DIRT JUMPS
SLOPESTYLE
PUMP TRACK
SKATE PARK
The Alcatraz allows the rider to follow in Matt Jones’ footsteps to build and personalize the best dirt jump bike possible. At home boosting your local 6 pack, ripping up the pump track, or hitting the local skate park the Alcatraz has what you need to take care of business.
Please note - specifications & price subject to change without prior notice.
| 01. FRAME | Series 3 6061 Aluminum Frame, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
| 02. FRONT SUSPENSION | Manitou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle |
| 03. REAR SUSPENSION | - |
| 04. RIMS | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| 05. HUB, REAR | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| 06. HUB, FRONT | Forged Alloy, 110x20mm, Disc, 32H |
| 07. SPOKE, NIPPLES | 14g Black Stainless Steel |
| 08. TIRES | Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead |
| 09. DERAILLEUR, REAR | - |
| 10. DERAILLEUR, FRONT | - |
| 11. SHIFT LEVER | - |
| 12. CRANKSET | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
| 13. BOTTOM BRACKET | External Sealed Cartridge Bearings |
| 14. CHAIN | KMC HL-1 |
| 15. CASSETTE | 14T Single Speed Cog |
| 16. BRAKE, FRONT | Tektro HDM275 Hydraulic, 160mm Rotor |
| 17. BRAKE, REAR | Tektro HDM275 Hydraulic, 160mm Rotor |
| 18. BRAKE LEVERS | Tektro HDM275 |
| 19. HANDLEBAR | Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back |
| 20. STEM | Marin 3D Forged Alloy, 40mm |
| 21. GRIPS | Marin Single Clamp Locking |
| 22. HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| 23. SEATPOST | Marin Alloy, 30.9mm |
| 24. SADDLE | Marin DJ Saddle |
| 25. PEDALS | Alloy Platform |
| 26. EXTRAS | Marin Chain Tension Device |
| SHORT | LONG | |
|---|---|---|
| STACK | 575 | 580 |
| REACH | 385 | 430 |
| HEADTUBE ANGLE | 69° | 69° |
| HEADTUBE LENGTH | 115 | 120 |
| SEATTUBE ANGLE | 69° | 69° |
| SEATTUBE LENGTH | 320 | 320 |
| TOPTUBE EFFECTIVE | 600 | 646 |
| BB HEIGHT | 317 | 317 |
| BB DROP | 22 | 22 |
| CHAINSTAY | 395 | 395 |
| WHEELBASE | 1037 | 1083 |
| STANDOVER HEIGHT | 370 | 400 |
| FORK OFFSET | 42 | 42 |
| SEATPOST DIAMETER | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 750 | 750 |
| STEM LENGTH | 40 | 40 |
| CRANK LENGTH | 170 | 170 |
Additional Information
| Size | Sm |
|---|
