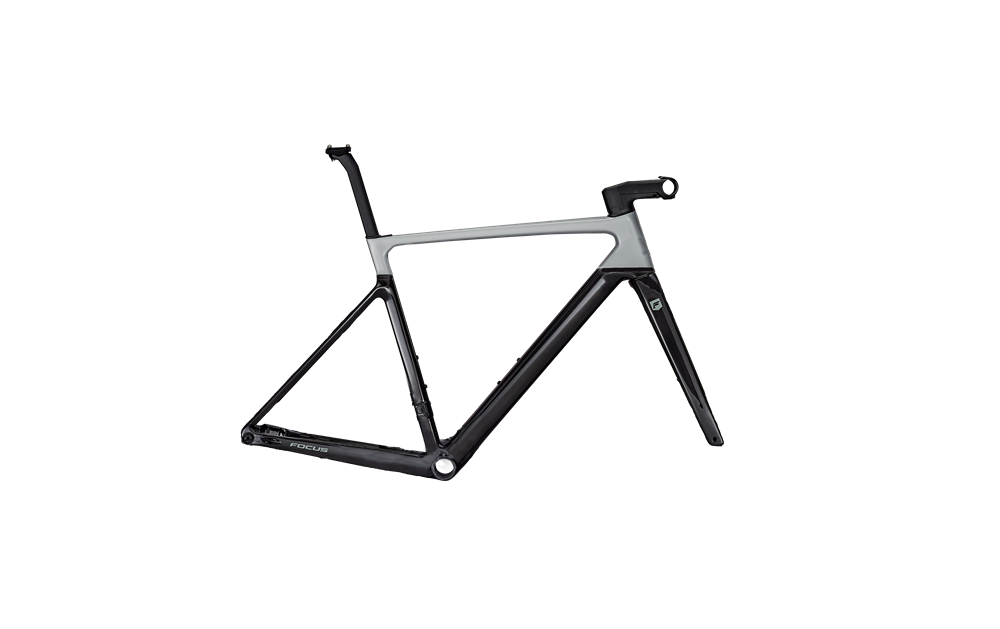

2024 Focus IZALCO MAX DISC Frameset
$0.00
Out of Stock
Super Fast Nationwide Shipping! View Shipping Information
Description
- MAX AERO CARBON FRAME (865 G)
MAKES YOU FASTER
AERO GAINS
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.
7 SIZES FOR A PERFECT FIT
The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
EFFORTLESS HANDLING AND MAXIMUM STIFFNESS
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
SPECIFICATIONS
| FRAME MATERIAL | Carbon |
| FRAME | MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing |
| FORK | MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount |
| STEM | FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount |
| HEADSET | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
| BOTTOM BRACKET SHELL | BB86 |
| SEATPOST | FOCUS Aero Carbon, D-shape, 350 mm Setback: 15 mm |
| BRAKE | Disc |
| TIRES | Vittoria Corsa, Next TLR, 28-622, Folding |
| GEARS | 24 |
| FRAME WEIGHT IN GM. | 865 gm |
| SIZE | XXS, XS, S, M, L, XL, XXL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
Additional Information
| Size | Focus f24 izalco max disc frameset silver carbon 47 xxs, Focus f24 izalco max disc frameset silver carbon 50 xs, Focus f24 izalco max disc frameset silver carbon 52 s, Focus f24 izalco max disc frameset silver carbon 54 m, Focus f24 izalco max disc frameset silver carbon 56 l, Focus f24 izalco max disc frameset silver carbon 58 xl, Focus f24 izalco max disc frameset silver carbon 61 xxl |
|---|
